ALLOY ACID
PIPING
Galiakotwala Engineering has supplied Alloy Piping Systems to more than 63+ Acid Plants, many of which are operating satisfactorily even after 15 years.
Over the past decade, acid piping has evolved to utilize metallic alloys as the preferred material. This shift is attributed to the inherent advantages of using alloy acid piping over traditional materials.
Comparison Between Conventional and Alloy Piping
Conventional Piping
High corrosion rate (upto 2.5 mm/yr)*.
Large number of flanges, therefore higher risk of acid leaks.
Iron sulphate sludge can cause plugging of Mist Eliminators and tower packing.
Constant requirement of maintenance and inventory of spares in case of acid leaks. No possibility of welding.
Difficult to handle due to heavy weight and bulky size.
Low ductility and higher risk of brittle failure leads to reduction in safety levels.
Designed and operated at lower velocities due to risk of erosion and corrosion.
Alloy Piping
Low corrosion rate (0.025 mm/yr – 0.05 mm/yr)*.
Welded construction reduces the number of flanges, minimizing the risk of acid leaks.
No iron sulphate formation due to negligible corrosion, resulting in reduced plugging/ maintenance of tower internals.
Practically zero maintenance and no requirement for any spares. Full possibility to weld and repair on-site using conventional welding techniques.
Easy to erect. It is flexible due to lightweight and compact size.
Higher ductility and minimized risk of brittle failure, resulting in higher safety level.
Designed and operated at higher velocities without risk of erosion and corrosion.
*Depends on materials used
The life cycle cost of Galiakotwala Alloy Piping is lower due to significantly reduced maintenance requirements. Once installed, Alloy Acid Piping typically lasts the full life of the plant with minimal maintenance. Alloy Acid Piping has proven its reliability with numerous installations worldwide, with over 40,000 meters installed globally.

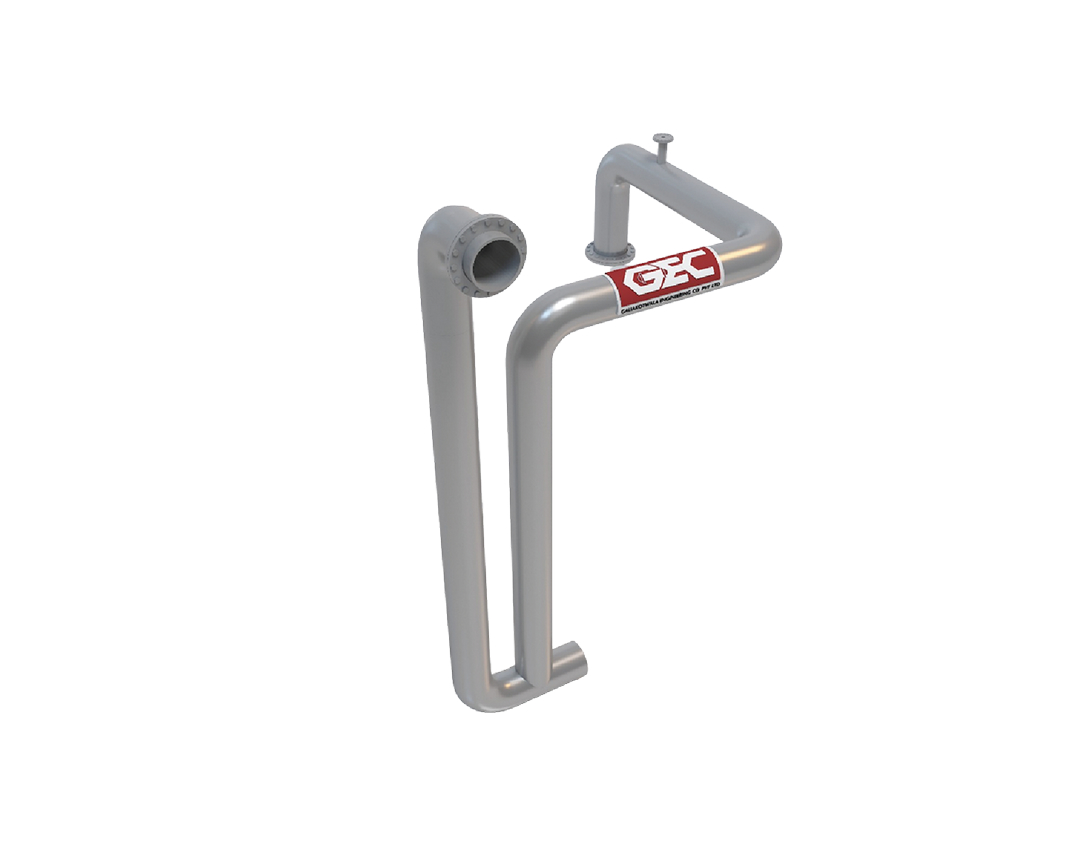

Alloy Nozzles, Sleeves and Dip Pipes
High-corrosion and leakage-prone areas in acid plants can be upgraded with alloy components, reducing or eliminating frequent maintenance.
Galiakotwala Engineering manufactures nozzles, sleeves, dip pipes, and other parts in alloy materials, designed to prevent damage to original equipment, which is often complex to replace.
Alloy Strainers

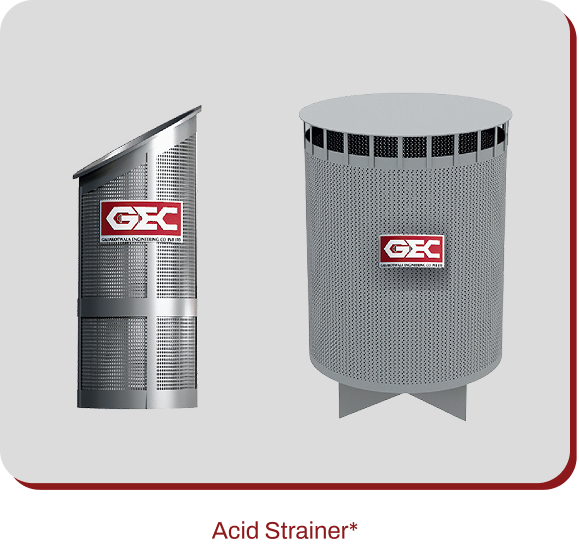

We supply both inline strainers and strainers for side and bottom outlet nozzles, available in mesh or perforated plate designs.
Alloy Strainers offer longer life, resist plugging, and are easy to clean. Vortex breakers can be integrated with strainers and nozzles and delivered as a single unit.
*Illustrations are for representation purposes only.

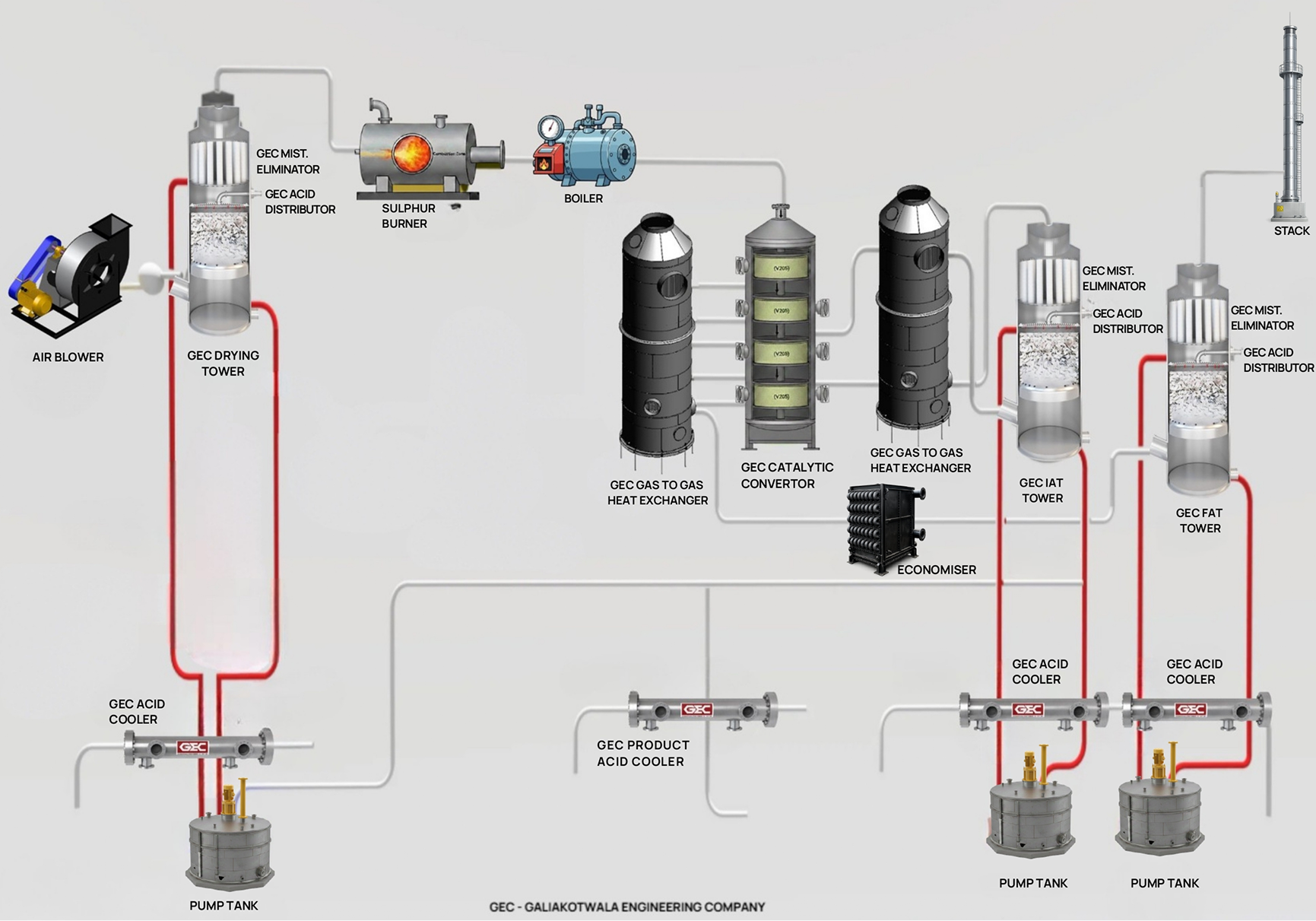

Typical Sulphuric Acid Plant Process Flow
